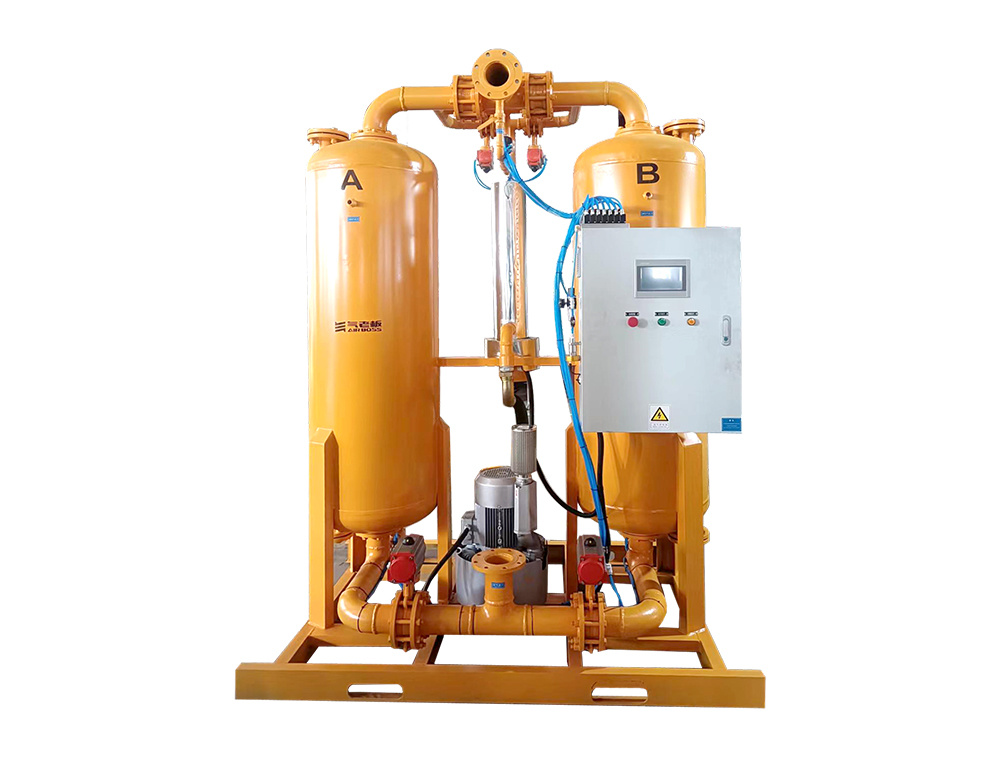

Regenerative adsorption blast dryer of low air consumption
Stable dew point at outlet, and multiple dew point temperatures are available for selection (-20℃, -40℃, -70℃ optional).
Classify:
Key words:
Regenerative adsorption blast dryer of low air consumption
- Features
- Specification
-
Feature
1.Stable dew point at outlet, and multiple dew point temperatures are available for selection (-20℃, -40℃, -70℃ optional).
2.All valve series adopt first-tier brands. They have passed 100,000 times of extreme trouble-free testing and 50,000 times of leak-free testing. Big brands are more trustworthy.
3.The whole series of adsorbents adopt international first-tier brands. They have high adsorption efficiency, are durable, and big brands are more trustworthy.
4.The whole series of products have ultra-low pressure drop. The specially designed cyclone diffusion device enlarges the flow passage. Full-flow valves. The pressure loss of blast zero air consumption can be as low as 0.01 MPa. The pressure loss of compressed heat zero air consumption can be as low as 0.02 MPa.
5.The whole series of products have ultra-low energy consumption. The heater adopts a multi-module micro-heating mode for constant temperature output, with lower energy consumption and no redundant energy waste. Intelligent regeneration is adopted. The system judges the completion of regeneration by itself without wasting a bit of energy. Intelligent dew point control and dew point standby achieve ultimate energy saving.
6.Multiple controllers are available for selection: text screen + PLC, touch screen + PLC. They support the MODBUD communication protocol and RS485 interface and support the DCS system.
7.Rich expandable functions are available for selection: dew point energy-saving control, interlocking start-stop, remote start-stop, pressure monitoring, temperature monitoring, outlet dew point monitoring, heating temperature display, and alarm function.
8.The whole series of products come with a two-year warranty and can be extended to five years. -
Main technical parameters
Inlet pressure
0.45-1.0MPa
Regeneration mode
Blast and thermal regeneration
Rated inlet temperature
≤35℃
Operating mode
Auto switch & adjustable cycle time
Max. inlet temperature
≤45℃
Control mode
PLC controlled
Oil content of inlet air
≤0.08ppm
Adsorbing agent
Activated aluminum oxide or molecular sieves
Dust load of the compressed air
≤60um
Pressure drop
≤0.015MPa
Average resurgent air consumption
≤2%
Rated PDP
-20℃~-40℃
Specification
Model
Capacity
Size Of Inlet&Outlet
Weight
Blower power
Electric heating power
Filter
Dimension(mm)
Nm/min
L
W
H
KG
KW
KW
Pre-Filter
Filten
JGD-015
18
1600
1000
2400
DN65
1200
1.3
6
T-015
A-015
T-015
JGD-020
23
1650
1100
2750
DN80
1400
2.2
9
T-020 L
A-020L
T-020L
JGD-025
28
1700
1100
2800
DN80
1700
3
9
T-030L
A-030L
T-030L
JGD-030
33
1700
1200
2850
DN80
2000
4
18
T-040L
A-030L
T-030L
JGD-035
38
1700
1250
2900
DN100
2220
5.5
18
T-040L
A-040L
T-040L
JGD-040
45
1800
1300
2900
DN100
2500
5.5
24
T-060L
A-040L
T-040L
JGD-050
55
1900
1350
3000
DN125
2900
7.5
27
T-060L
A-060L
T-060L
JGD-060
65
2000
1450
3000
DN125
3900
7.5
36
T-060L
A-060L
T-060L
JGD-080
90
2350
1500
3050
DN150
4400
11
48
T-080L
A-080L
T-080L
JGD-100
110
2400
1500
3150
DN150
4700
15
60
T-100L
A-100L
T-100L
