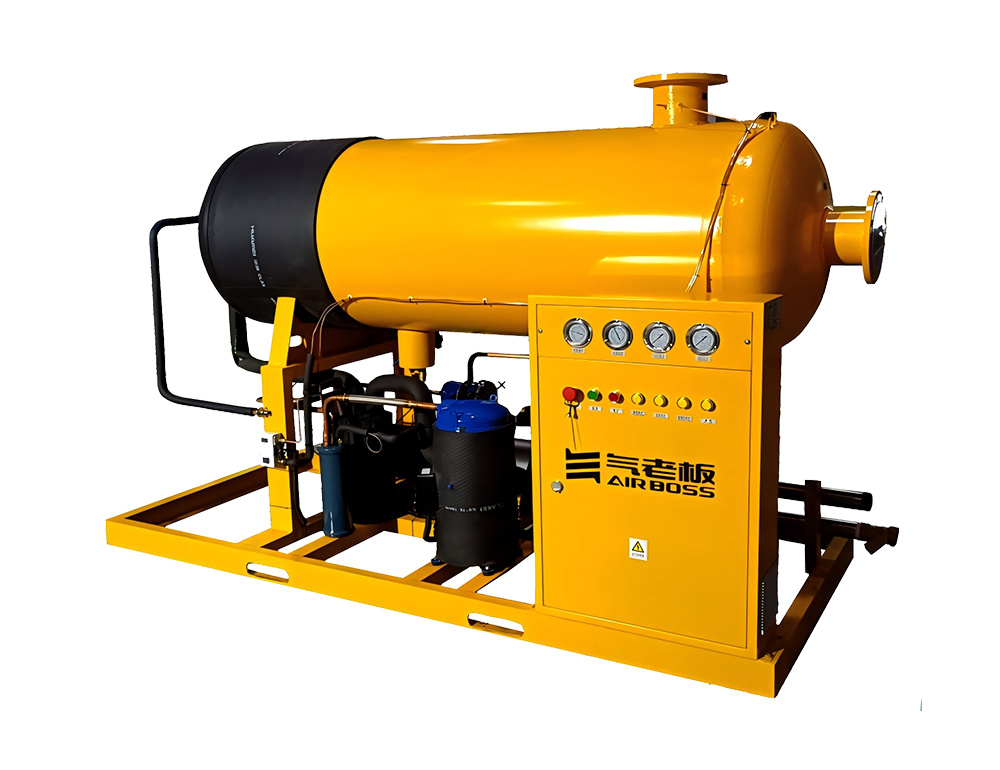

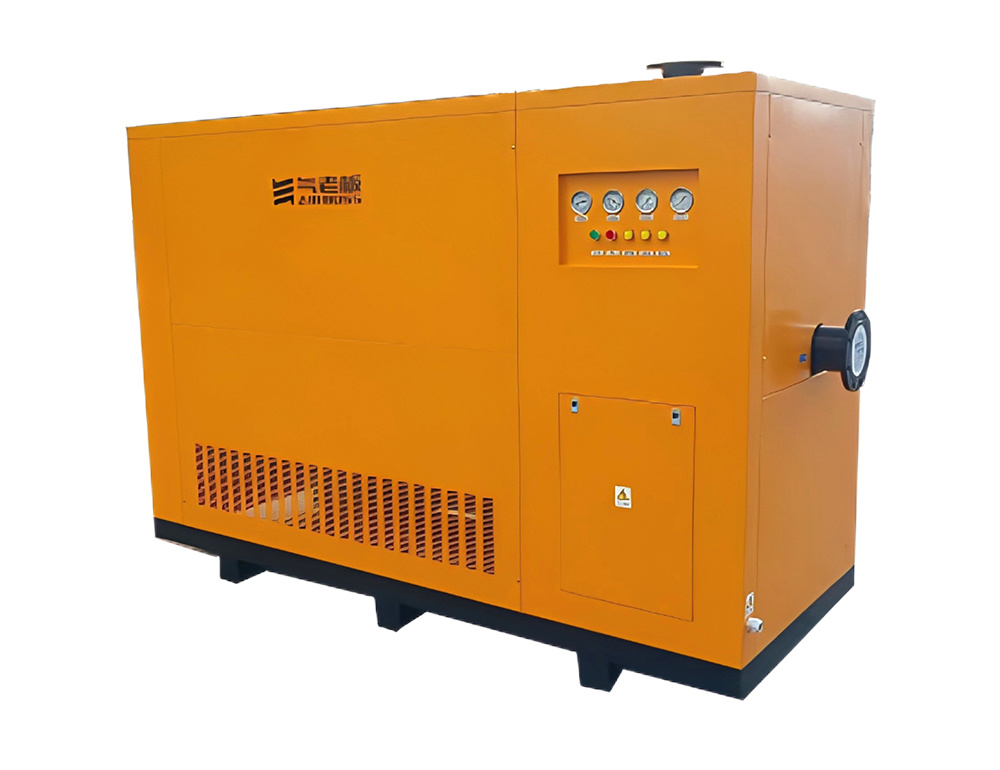

Refrigerated Dryers
Three major superiorities:extreme water removal, pressure loss-based energy efficiency, and environmental-friendly energy saving. 5-level water removal design: Water removal by cyclone separation, water removal by lowering the flow velocity, water removal by the filter unit, water drainage by double separation, and water removal by gravitational separation. Ultra-low pressure loss: ≤0.01Mpa; Pressure dew point (PDP): 2~10℃. 30% of the energy can be saved for the dryer (in comparison with the traditional refrigerant dryer) directly, and the entire system energy can be saved by 2% indirectly. Environmentally friendly and energy conservative: About our variable-frequency refrigerant air dryer series products, the power consumption of the refrigerating system automatically changes along with the load. This means that our products waste no energy. They are both environmentally friendly and energy-efficient. Therefore, we provide a solution to scenarios where compressed air consumption varies periodically.
Classify:
Key words:
Refrigerated Dryers
- Features
- Specification
-
Air-cooled refrigerant air dryer working conditions (high-temperature type)
1. Ambient temperature: ≤40℃
2. Max. inlet temperature: ≤80℃; rated inlet temperature: ≤52℃
3. Design pressure corresponding to the handling capacity: 0.7MPa
4. Max. bearing pressure of the pre-evaporator housing: ≤1.0MPa
5. PDP: 2~10℃
6. Mounting environment: No sun exposure, no rainwater, good ventilation, no thermal sources/masses above the ambient temperature on the machine surface, no exhaust barriers on the back side of the machine, and no obvious dust or fluffy catkins. Besides, the air-cooled refrigerant air dryer should be mounted behind pipelines of air tank and at a flat and hard foundation.
7. Prohibited substances: No suspension of strong acidic/alkaline matters or ammonia /molecules is allowed, and such matters or ammonia /ammonia molecules MUST NOT enter the core portion of the evaporator.
8. Notes for pipeline installation: At least ONE pipeline filter needs to be installed in the front of such refrigerant air dryers.Water-cooled refrigerant air dryer working conditions (high-temperature type)
1. Ambient temperature: ≤56℃
2. Max. inlet temperature: ≤80℃; rated inlet temperature: ≤52℃
3. Design pressure corresponding to the handling capacity: 0.7MPa
4. Max. bearing pressure: ≤1.0MPa. Note: Customization is available if the bearing pressure is beyond this range.
5. PDP: 2~10℃
6. Cooling conditions: Soft water for industrial purposes; water pressure: 0.3～0.5MPa; water temperature ≤32℃; and water supply capacity: 0.32t/h*Nm3/min
7. Prohibited substances: No suspension of strong acidic/alkaline matters or ammonia/ammonia molecules is allowed; and such matters or ammonia /ammonia molecules MUST NOT enter the core portion of the evaporator.
8. Notes for pipeline installation: At least ONE pipeline filter needs to be installed in the front of such refrigerant air dryers.
9. Mounting environment: No sun exposure, no rainwater, hard foundations, and no obvious dust or fluffy catkins. Besides, the air-cooled refrigerant air dryer MUST be mounted behind pipelines of air tank.
-
Air-cooled refrigerant air dryer Specification
Model
Capacity(Nm/Min)
Connection
Power Supply
Compressor power
Refrigerant type
Evaporator Type
Control & Protect
Weight
(KG)
Dimension(mm)
L
W
H
HX-005GF
6.0
RC 1-1/2"
1Φ 220V 50Hz
1.24
R410a
Internal thread copper
tube+hydrophilic aluminum foilRemote start-stop function
Protection against
ice blockage.Intelligent
start-stop of compressor.
Protection for start-up delay.138
900
500
1030
HX-007GF
7.5
RC 1-1/2"
1.50
200
1100
600
1200
HX-008GF
8.5
RC 2"
1.98
220
1100
600
1200
HX-010GF
11.5
RC2"
2.22
250
1450
520
1260
HX-012GF
13.8
RC2"
2.60
270
1450
520
1260
HX-014GF
14.8
DN65
3φ 380V 50Hz
2.80
Remote start-stop function
Protection against ice
blockage.Intelligent
start-stop of compressor.
Protection for start-up delay365
1650
650
1450
HX-015GF
17
DN65
3.00
380
1650
650
1450
HX-018GF
19.8
DN80
3.20
545
1950
750
1650
HX-020GF
24.5
DN80
3.60
565
1950
750
1650
HX-025GF
28
DN80
4.10
670
2200
750
1650
HX-030GF
33
DN80
4.80
690
2200
750
1650
HX-035GF
38
DN100
5.30
820
2400
850
1750
HX-040GF
45
DN100
6.90
845
2400
850
1750
HX-050GF
55
DN125
7.90
990
2500
1000
1750
HX-060GF
65
DN125
8.90
1050
2500
1000
1750
HX-080GF
88
DN150
10.40
1450
2450
1200
1750
HX-100GF
110
DN150
16.00
1660
2600
1360
1760
HX-120GF
130
DN200
17.80
1950
3100
1360
1980
HX-150GF
170
DN200
21.10
2300
3500
1750
2120
HX-200GF
220
DN250
26.20
2750
3700
1800
2210
“+S”: A prefilter and a post-filter are included.
Inlet and outlet dimensions can be adjusted according to the caliber of the pipelines used in the corresponding air compressor. If no machine models described above are suitable, please don’t hesitate to contact us and negotiate about customization.
Specifications described above are subject to change without prior notice.Water-cooled refrigerant air dryer Specification
Model
Capacity
(Nm/Min)
Connection
Power Supply
compressor
Power
( W K )
Refrigerant Type
Evaporator Type
Control & Protect
Weight
(KG)
Size Of Inlet&Outlet
(MM)
Dimension
(mm)
L
W
H
HX-015GW
17
DN65
30 380V 50Hz
3.00
R410a
Internal thread copper tube+hydrophilic aluminum foil
Remote start-stop function,Protection against ice blockag,Intelligent start-stop of compressor, Protection for start-up delay
375
RC1”
1650
650
1450
HX-018GW
19.8
DN80
3.20
530
1950
750
1620
HX-020GW
24.5
DN80
3.60
545
RC1-1/2”
1950
750
1620
HX-025GW
28
DN80
4.10
650
2200
850
1630
HX-030GW
33
DN80
4.80
670
2200
850
1630
HX-035GW
38
DN100
5.30
800
2400
850
1720
HX-040GW
45
DN100
6.90
825
2400
850
1720
HX-050GW
55
DN125
7.90
950
2500
1000
1750
HX-060GW
65
DN125
8.90
1000
2500
1000
1750
HX-080GW
88
DN150
10.40
1300
2450
1080
1750
HX-100GW
110
DN150
16.00
1500
2600
1150
1750
HX-120GW
130
DN200
17.80
1700
2900
1260
1750
HX-150GW
170
DN200
21.10
2000
Rc2”
3500
1400
1750
HX-200GW
220
DN250
26.20
2400
3700
1700
2100
HX-250GW
270
DN250
34.20
2800
3800
1750
2150
HX-300GW
320
DN300
41.80
3150
3900
1800
2200
Inlet and outlet dimensions can be adjusted according to the caliber of the pipelines used in the corresponding air compressor. If no machine models described above are suitable, please don’t hesitate to contact us and negotiate about customization. Moreover, the specifications described above are subject to change without prior notice.
