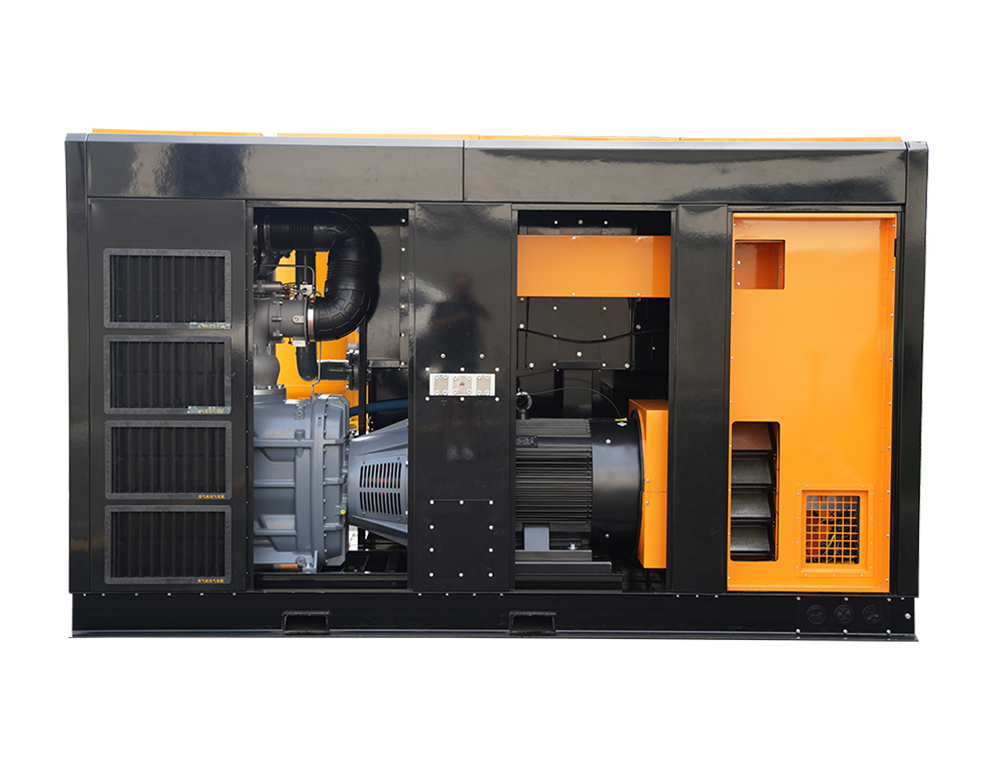

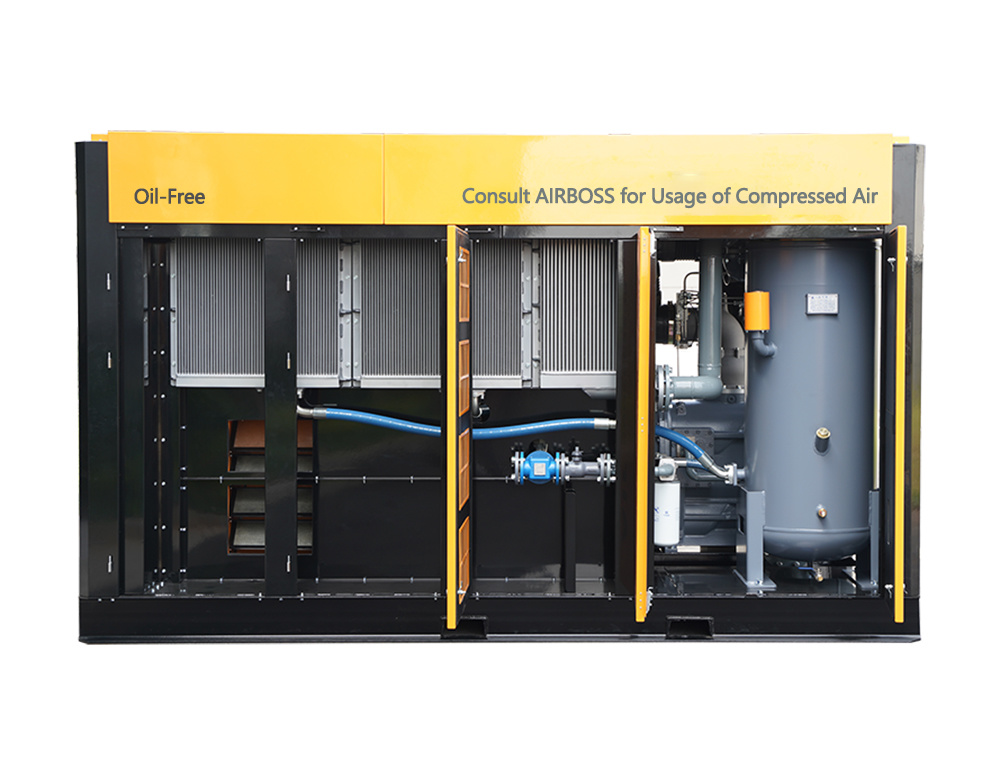

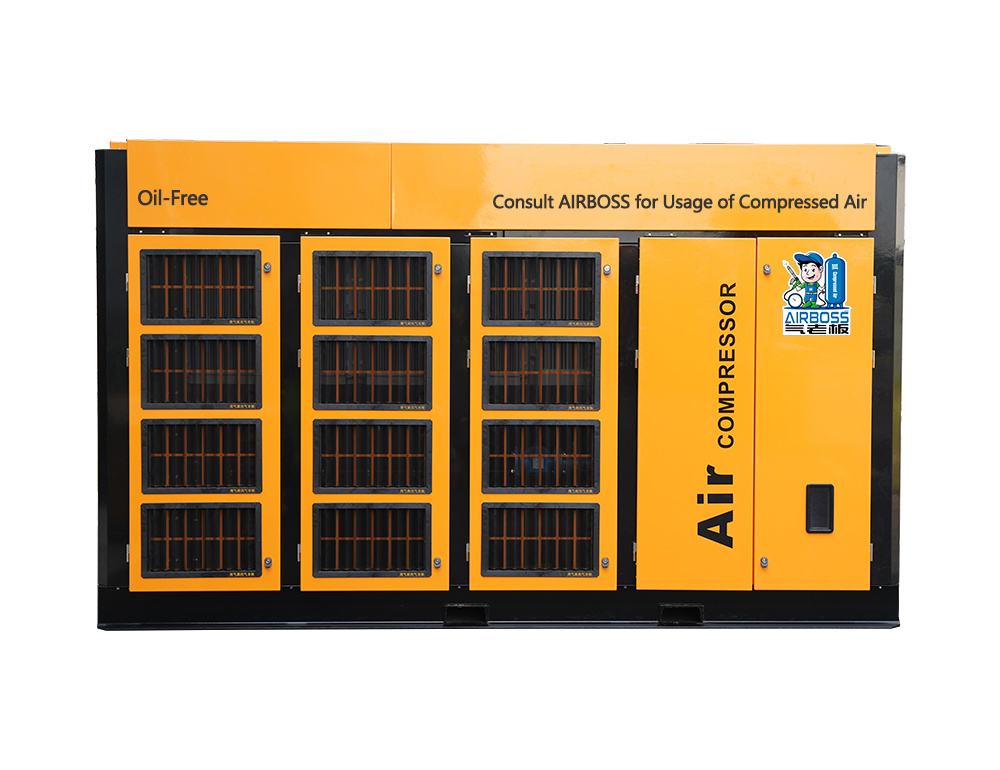

Oil-free Rotary Screw Compressors
Efficient and energy-efficient: Designed with two-stage compression, our two-stage oil-free screw air compressors can more effectively utilize energy than a single-stage air compressor does.
Classify:
Key words:
Oil-free Rotary Screw Compressors
- Features
- Specification
-
Features
About performance
Efficient and energy-efficient: Designed with two-stage compression, our two-stage oil-free screw air compressors can more effectively utilize energy than a single-stage air compressor does. Under the same power input, more compressed air can be outputted and the operating cost is lowered accordingly.
Stable pressure: Our two-stage oil-free screw air compressors can output pressure steadily and continuously. Even under a high working load, the outputted pressure hardly fluctuates. This ensures the stability of the production process.About air quality
Oil-free and clean: Thanks to a special oil-free design, the compressed air contains no oil. In this way, the air purity can be guaranteed. For food processing, pharmaceutical, and electronics industries, etc. with strict air quality requirements, air purity is critical, and ensuring air purity can avoid product quality problems caused by oil contamination.
About reliability
High durability: Internal key components such as the screw are made from high-quality wear-resistant materials. Through precision machining and strict quality inspection, our products are highly durable. Therefore, the maintenance and replacement frequency of devices can be reduced.
Stable operation: The advanced two-stage screw technology result in little vibration and steady operation of air compressors during their running. This may lower the possibility of equipment failure caused by mechanical vibration.About maintenance
Simple and convenient maintenance: The reasonable overall structural design makes it convenient for daily maintenance. For example, routine maintenance procedures such as separator element replacement become simpler, faster, and more convenient, which may save time and human costs.
-
Technical Data Sheet
Product
Model
QLB220-OF-V-G-W-10
Rated Pressure
1.0Mpa
Transmission Mode
Direct Connection
Cooling Method
Water-cooling
Noise Value@7M
≤75DB（A）
Weight
≈6775KG
Size
3800×2080×2552（MM）
Compressor
Model
DGT160G1（3 .818）
Rated Exhaust Pressure
10.5Mpa
Rated Capacity
36.0m³/Min
Shaft Power
243.7KW
Intake Pressure
1atm
Intake Humidity
≤90%R.H.
Motor
Model
JPM315M3250-220
Rated Power
220KW
Type
Permanent Magnet Synchronous
Rated Voltage
380V
Number of Magnetic Pole Pairs
8
Rated Frequency
216.7HZ
Cooling Method:
Air-cooling
Protection Level
IP55
Lubricating
System
Inlet Water Pressure
≥4＜5bar
Inlet Water Volume
40T/H
Oil Pump Model
MDK80RF-100L2-4-3-R
Oil Pump Elastomer Model
GR24
Oil Filter Model
P560693*1 HD133000F*1
Pressure Sensor Brand
Danfoss
Electrical System
Control Module Brand
MAM6090
Frequency Converter Model
SK190028043
Air Intake and Exhaust System
Intake Valve Model
GZ-200AF
Air Filter Element Model
P777868
Solenoid Valve Model
ODE
Primary Safety Valve Model
A28X-16T-DN50/0.35
Coupling Elastomer Block Model
GR90
Exhaust Check Valve Model
H71W-16RS80
