Measuring instrument
The vortex flowmeter is mainly used in petroleum, chemical engineering, metallurgy, power, and heating industries and is used for liquid, air, and steam flow measurement and detection control in closed pipelines of municipal construction and environmental protection projects.
Classify:
Key words:
Measuring instrument
- Features
- Specification
-
Feature

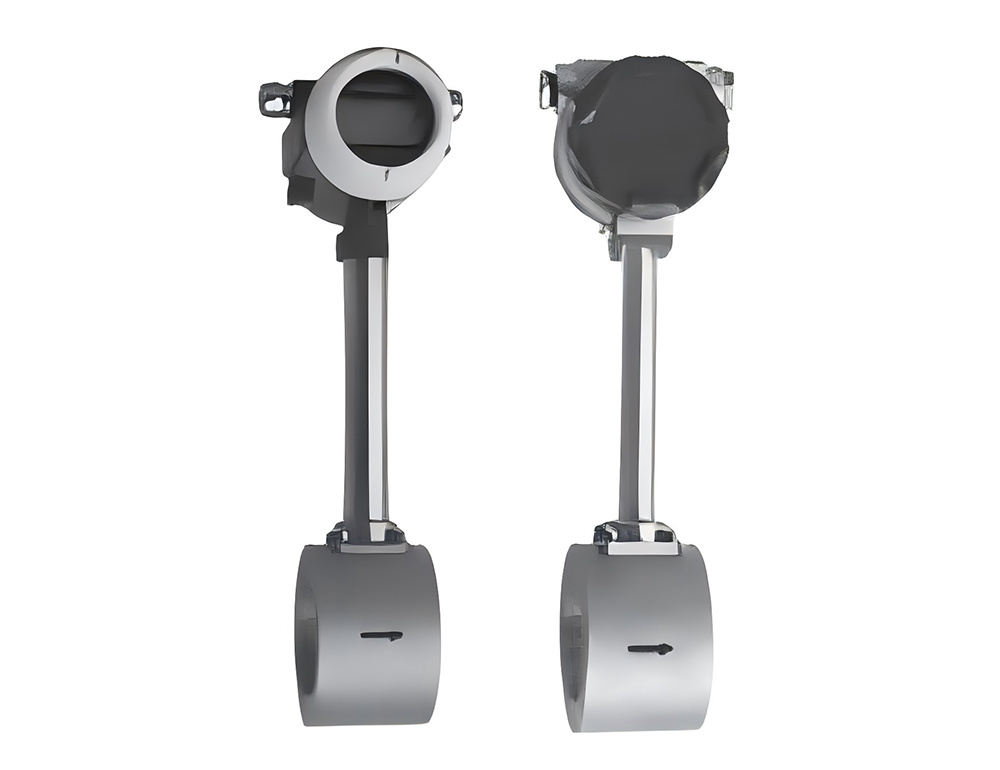

The vortex flowmeter is mainly used in petroleum, chemical engineering, metallurgy, power, and heating industries and is used for liquid, air, and steam flow measurement and detection control in closed pipelines of municipal construction and environmental protection projects. It is capable of outputting impulse frequency signals or (4 ~20)mA standard current signals. If matched with an appropriate industrial automation instrument, it can display instantaneous and accumulated flow rates, and implement multiple functions such as flow measurement and automatic control. Besides, the vortex flowmeter features a wide measuring range, high precision, and low-pressure loss... It can be used to measure specific working conditions and volume flow rates. Moreover, such measurement is hardly affected by relevant physical parameters, including fluid density, pressure, temperature, and viscosity. Instrument coefficients are highly reliable and remain stable in the long term. Almost no maintenance is required.
-
Nominal diameter(mm)
15, 20, 25，32，40，50，65，80，100，125，150，200，250，300 , 350, 400, 450, 500, 600
Nominal pressure(MPa)
1.6 2.5 4.0 ( For higher pressure, please specify. )
Medium temperature
(1)-40 ～ +150℃ (2)-40 ～ +250℃ (3)-40 ～ +350℃ (4)-40 ～ +425℃
Class of accuracy
Class 1.0 for liquids, and Class 1.5 for air
Range of the measured flow rate
liquids: (1～10)m/s；gases：(5～50)m/s
Range ratio
10 ∶ 1 ～ 20 ∶ 1
Output signal
Voltage pulse in a three-wire system/(4～20)mA standard current signal/switching value alarm signal
Power supply
Pulse output: AC220V for flowmeters, or DC12V for primary instrument sensors (supplied by the system)
4~20mA output: DC24V
Battery powered: 3.6V/5Ah
Intrinsic safety explosion-proof sign
Exia Ⅱ CT1 ～ T4
Explosion-proof conformity certificate No.
GYB091558X
Environmental conditions
Temperature, relative humidity, and atmospheric pressure
Applicable media
Air, liquids, or steam
Product standards
JB/T 9249-1999
Application cases
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Advantage
Application description
Rebar is the common name for hot rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar is composed of HRB and the minimum yield point of the grade. H, R, and B are the first letters of the three words Hotrolled, Ribbed, and Bars respectively. Hot-rolled ribbed steel bars are divided into three grades: Grade II HRB335 (the old grade is 20MnSi), Grade III HRB400 (the old grades are 20MnSiV, 20MnSiNb, 20Mnti), and Grade IV HRB500.
Factory description
Rebar is the common name for hot rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar is composed of HRB and the minimum yield point of the grade. H, R, and B are the first letters of the three words Hotrolled, Ribbed, and Bars respectively. Hot-rolled ribbed steel bars are divided into three grades: Grade II HRB335 (the old grade is 20MnSi), Grade III HRB400 (the old grades are 20MnSiV, 20MnSiNb, 20Mnti), and Grade IV HRB500.
Shipping Packaging
Rebar is the common name for hot rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar is composed of HRB and the minimum yield point of the grade. H, R, and B are the first letters of the three words Hotrolled, Ribbed, and Bars respectively. Hot-rolled ribbed steel bars are divided into three grades: Grade II HRB335 (the old grade is 20MnSi), Grade III HRB400 (the old grades are 20MnSiV, 20MnSiNb, 20Mnti), and Grade IV HRB500.
Why Choose Us?
1)The products can be made completely according to the customer's requirements, and we have our own factory. 2)High quality product and good price. 3)Good Pre-sale、on sale and after sales service. 4)Short delivery time. 5)Exported all over the world, with rich experience.
FAQ
Q：I want a specific size or color. Can I get my color coated steel customized?
Yes. Customization is available. You can choose the color or pattern, size (length, width, thickness, weight, etc.), paints, shape, etc. We offer coils and sheets, as well as further processing services, such as logo printing, etc. Please send us your requirements, we will meet your requirements.
Q: Are we a trader or a manufacturer?
A: We are a manufacturer and have our own factory.
Q: How to pack?
A: Can be packaged according to customer's needs
Q: How long is your delivery time?
A: If the goods are in stock, generally about 25-30days if the goods are not in stock, according to the quantity.
