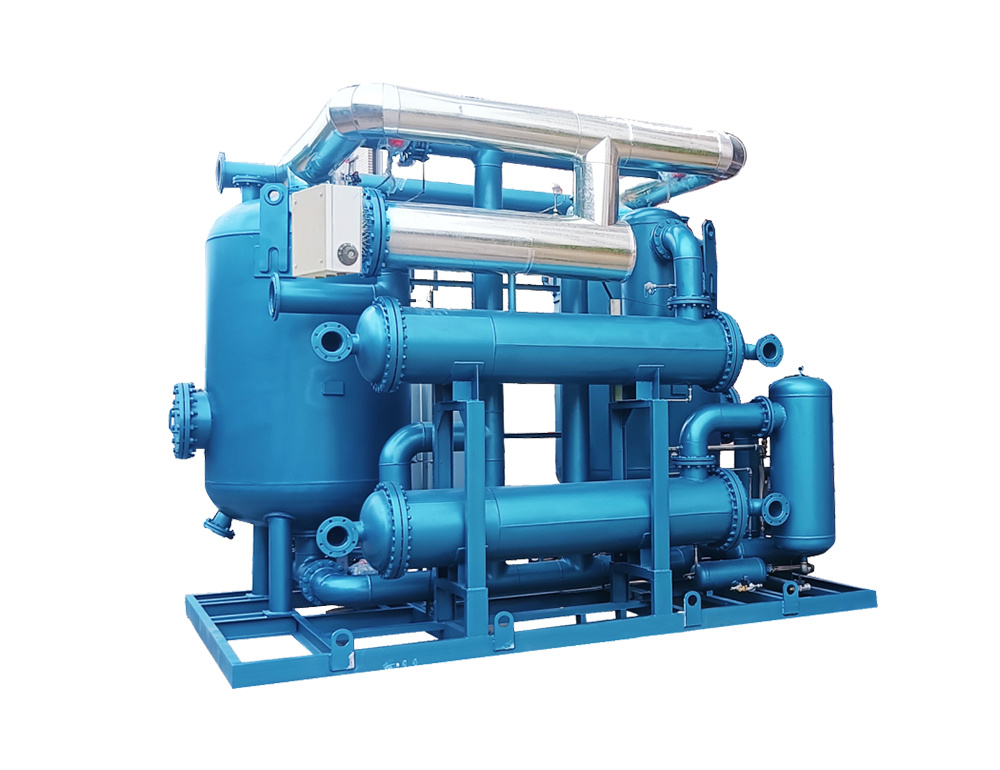

Compression Heat Zero Air Consumption Regenerative Adsorption Dryer
Stable dew point at outlet, and multiple dew point temperatures are available for selection (-20℃, -40℃, -70℃ optional).
Classify:
Key words:
Compression Heat Zero Air Consumption Regenerative Adsorption Dry
- Features
- Specification
-
Feature
1.Stable dew point at outlet, and multiple dew point temperatures are available for selection (-20℃, -40℃, -70℃ optional).
2.All valve series adopt first-tier brands. They have passed 100,000 times of extreme trouble-free testing and 50,000 times of leak-free testing. Big brands are more trustworthy.
3.The whole series of adsorbents adopt international first-tier brands. They have high adsorption efficiency, are durable, and big brands are more trustworthy.
4.The whole series of products have ultra-low pressure drop. The specially designed cyclone diffusion device enlarges the flow passage. Full-flow valves. The pressure loss of blast zero air consumption can be as low as 0.01 MPa. The pressure loss of compressed heat zero air consumption can be as low as 0.02 MPa.
5.The whole series of products have ultra-low energy consumption. The heater adopts a multi-module micro-heating mode for constant temperature output, with lower energy consumption and no redundant energy waste. Intelligent regeneration is adopted. The system judges the completion of regeneration by itself without wasting a bit of energy. Intelligent dew point control and dew point standby achieve ultimate energy saving.
6.Multiple controllers are available for selection: text screen + PLC, touch screen + PLC. They support the MODBUD communication protocol and RS485 interface and support the DCS system.
7.Rich expandable functions are available for selection: dew point energy-saving control, interlocking start-stop, remote start-stop, pressure monitoring, temperature monitoring, outlet dew point monitoring, heating temperature display, and alarm function.
8.The whole series of products come with a two-year warranty and can be extended to five years. -
Main technical parameters
Inlet Pressure
0.45-1.0MPa
Regeneration Mode
Regeneration by compression heat
Inlet Temperature
110~180℃
Working Mode
Automatic switching. The cycle period can be adjusted on site.
Inlet Oil Content.
≤0.08ppm
Control Mode
PLC control
Heating Device
Optional
Installation Mode
Indoor. Installation without foundation is allowed
Average Regeneration Air Consumption
0
Adsorbent
Activated Alumina
Rated Pressure Dew Point
0℃~-20℃(≤-40℃optional)
Pressure Drop
≤0.02MPa
Specification
Model
Capacity
Nm'/minDimiension(mm)
L*W*HInlet&Outlet
Weight
KGMaximum cooling water
T/HJLYD-060
65
3000
2400
3150
PN1.0 DN125
4600
50
JLYD-080
90
3300
2600
3250
PN1.0 DN150
5700
72
JLYD-100
110
3500
2700
3350
PN1.0 DN150
6800
90
JLYD-120
130
3800
2900
3400
PN1.0 DN150
7800
98
JLYD-150
170
4000
3200
3480
PN1.0 DN200
9700
132
JLYD-200
210
4500
3650
3650
PN1.0 DN200
12500
165
JLYD-250
270
4900
3900
3750
PN1.0 DN250
16000
218
JLYD-300
310
5200
4200
3850
PN1.0 DN250
17900
248
JLYD-400
410
5500
4500
3980
PN1.0 DN300
21500
315
The dimensions and weight in the table are for reference only. If the air handling capacity reaches more than 500 Nm/min or the inlet pressure reaches more than 1.0 Mpa, customization is available.
