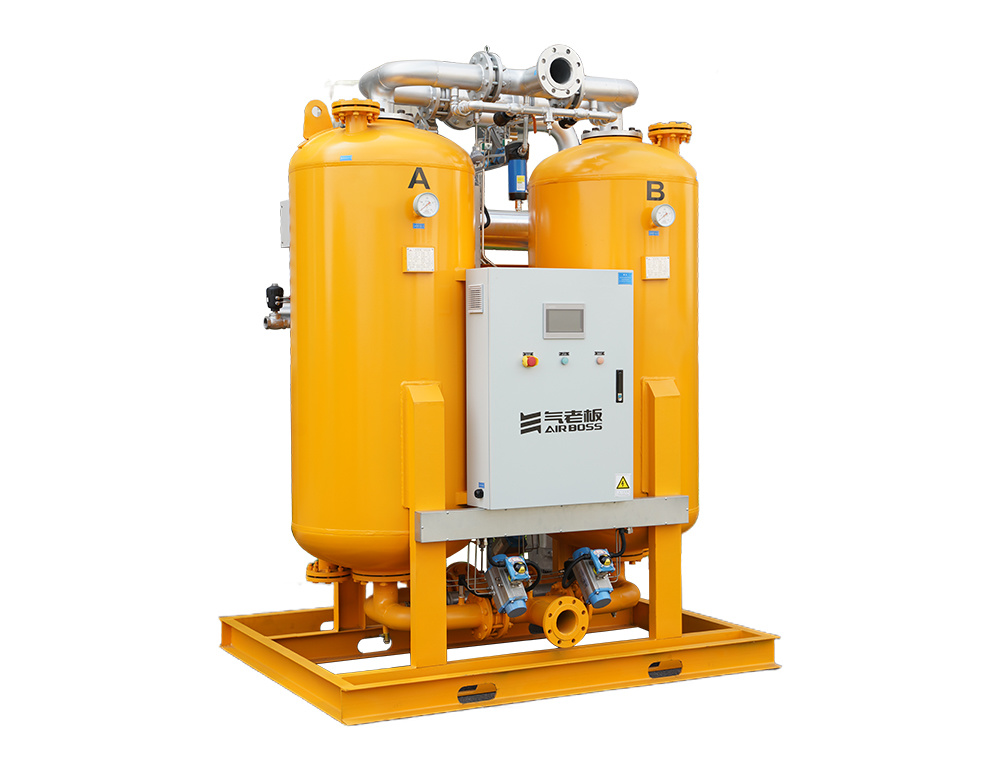

Blowing zero-air-consumption regenerative adsorption dryer
Stable dew point at outlet, and multiple dew point temperatures are available for selection (-20℃, -40℃, -70℃ optional).
Classify:
Key words:
Blowing zero-air-consumption regenerative adsorption dryer
- Features
- Specification
-
Feature
1.Stable dew point at outlet, and multiple dew point temperatures are available for selection (-20℃, -40℃, -70℃ optional).
2.All valve series adopt first-tier brands. They have passed 100,000 times of extreme trouble-free testing and 50,000 times of leak-free testing. Big brands are more trustworthy.
3.The whole series of adsorbents adopt international first-tier brands. They have high adsorption efficiency, are durable, and big brands are more trustworthy.
4.The whole series of products have ultra-low pressure drop. The specially designed cyclone diffusion device enlarges the flow passage. Full-flow valves. The pressure loss of blast zero air consumption can be as low as 0.01 MPa. The pressure loss of compressed heat zero air consumption can be as low as 0.02 MPa.
5.The whole series of products have ultra-low energy consumption. The heater adopts a multi-module micro-heating mode for constant temperature output, with lower energy consumption and no redundant energy waste. Intelligent regeneration is adopted. The system judges the completion of regeneration by itself without wasting a bit of energy. Intelligent dew point control and dew point standby achieve ultimate energy saving.
6.Multiple controllers are available for selection: text screen + PLC, touch screen + PLC. They support the MODBUD communication protocol and RS485 interface and support the DCS system.
7.Rich expandable functions are available for selection: dew point energy-saving control, interlocking start-stop, remote start-stop, pressure monitoring, temperature monitoring, outlet dew point monitoring, heating temperature display, and alarm function.
8.The whole series of products come with a two-year warranty and can be extended to five years. -
Main technical parameters
Inlet Pressure
0.45-1.0MPa
Regeneration Mode
Blowing and heating regeneration.
Rated inlet temperature
≤35℃
Cooling Method
Water cooling (air cooling optional). adjusted on site.
Maximum inlet temperature
≤45℃
Working Mode
Automatic switching, adjustable cycle period.
Inlet oil content
≤0.08 ppm
Control Method
PLC control
Dust content in product gas
≤60 μm
Adsorbent
Activated alumina or molecular sieve.
Average regeneration gas consumption
0
Pressure drop
≤0.012 MPa
Rated pressure dew point
-20℃~-40℃.
Specification
Model
Capacity
Size Of Inlet&Outlet
Weight
Blower power
Electric heating power
Filter
Dimension(mm)
Nm/min
L
W
H
KG
KW
KW
Pre-Filter
Filten
JLGD-015
18
2000
1300
2500
DN65
1400
1.3
6
T-015
A-015
T-015
JLGD-020
23
2000
1400
2780
DN80
1700
2.2
9
T-020 L
A-020L
T-020L
JLGD-025
28
2000
1500
2800
DN80
2000
3
9
T-030L
A-030L
T-030L
JLGD-030
33
2100
1500
2850
DN80
2300
4
18
T-040L
A-030L
T-030L
JLGD-035
38
2100
1600
2900
DN100
2600
5.5
18
T-040L
A-040L
T-040L
JLGD-040
45
2300
1700
2980
DN100
2900
5.5
24
T-060L
A-040L
T-040L
JLGD-050
55
2500
1800
3000
DN125
3300
7.5
27
T-060L
A-060L
T-060L
JLGD-060
65
2600
1800
3060
DN125
4600
7.5
36
T-060L
A-060L
T-060L
JLGD-080
90
2700
2000
3200
DN150
5100
11
48
T-080L
A-080L
T-080L
JLGD-100
110
3100
2200
3450
DN150
5500
15
60
T-100L
A-100L
T-100L
