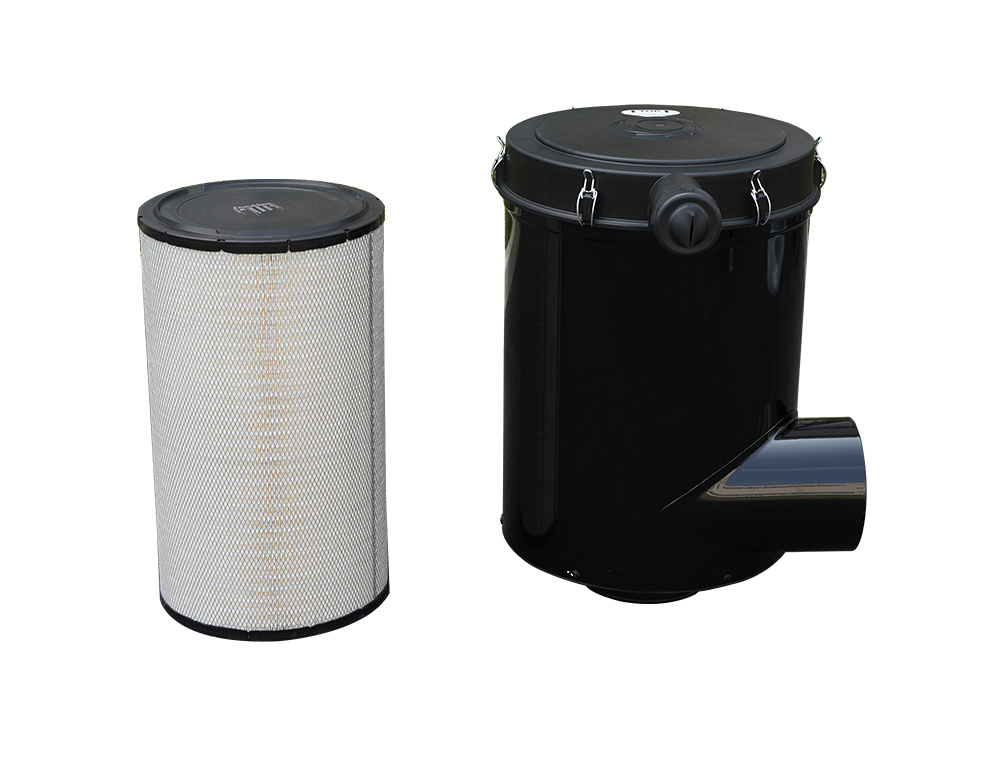

Air filters
Concerning AIRBOSS air filters, their filter media are imported and custom-made composite fiber filter paper with high enough water resistance.
Classify:
Key words:
Air filters
- Features
- Specification
-
Feature
Concerning AIRBOSS air filters, their filter media are imported and custom-made composite fiber filter paper with high enough water resistance. They can ensure high filtering efficiency and small restraining forces. We focus on every production process and try our best to make the products perfect.
In addition to standard products, we provide AIRBOSS air nano-filters that are more efficient, durable, and environment-friendly. Product customization of various specifications as required by our customers is supported.
Our main products cover SCB series PU rubber end caps and SCK series metal end caps. The applicable operating temperature of such caps lies in a range of -40~+80℃.
Advantages & features:
1. Long service life
2. Specially customized composite fiber filter media
3. Uniform filter paper spacing and low flow resistance
4. Perfectly matched seal
5. Reliable and stable in use
6. Rapid mounting and compact design -
Model
Rated flow rate
m³/minOuter diameter
d1[mm]Inner diameter
d2 [mmCore height
h[mm]Holes in the bottom
[mm]SCB320125
4.5
125
77
320
SCB375159
8
159
99
375
SCB400194
12
194
116
400
SCB403220
15
220
126
403
SCK303154
6
154
100
303
13
SCK178200
6
200
125
178
13
SCK378198
12
198
103
366
8.5
SCK170300
12
300
190
170
13
SCK383228
15
228
115
371
10.5
SCK498243
21
243
132
486
10.5
SCK445300
28
300
190
445
13
Notes: The rated flow rate is designed in the context where the operating pressure is 10 mbar.
Purpose: For industrial machinery and internal combustion engine flows
Range: 0.15~45 m3/min
Max. Operating temperature: 100°C

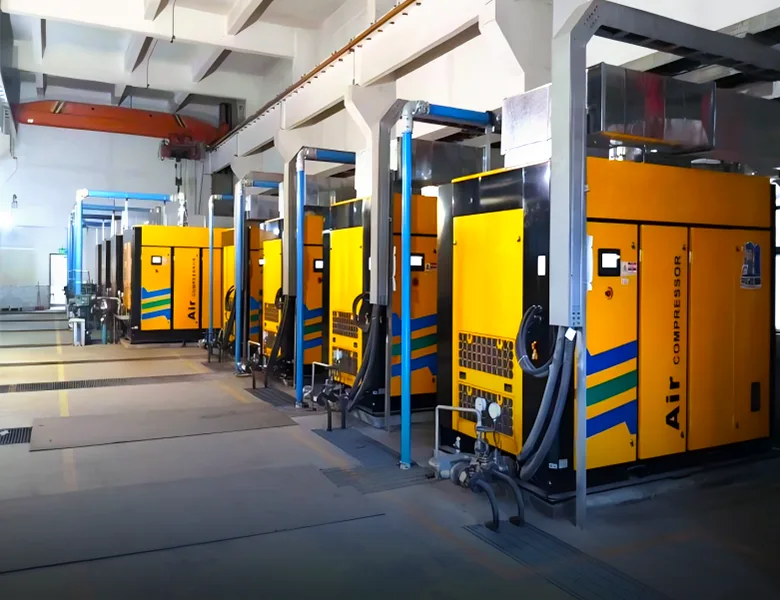

Application cases
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Oil Injected Rotary Screw Compressors
Advantage
Application description
Rebar is the common name for hot rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar is composed of HRB and the minimum yield point of the grade. H, R, and B are the first letters of the three words Hotrolled, Ribbed, and Bars respectively. Hot-rolled ribbed steel bars are divided into three grades: Grade II HRB335 (the old grade is 20MnSi), Grade III HRB400 (the old grades are 20MnSiV, 20MnSiNb, 20Mnti), and Grade IV HRB500.
Factory description
Rebar is the common name for hot rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar is composed of HRB and the minimum yield point of the grade. H, R, and B are the first letters of the three words Hotrolled, Ribbed, and Bars respectively. Hot-rolled ribbed steel bars are divided into three grades: Grade II HRB335 (the old grade is 20MnSi), Grade III HRB400 (the old grades are 20MnSiV, 20MnSiNb, 20Mnti), and Grade IV HRB500.
Shipping Packaging
Rebar is the common name for hot rolled ribbed steel bars. The grade of ordinary hot-rolled steel bar is composed of HRB and the minimum yield point of the grade. H, R, and B are the first letters of the three words Hotrolled, Ribbed, and Bars respectively. Hot-rolled ribbed steel bars are divided into three grades: Grade II HRB335 (the old grade is 20MnSi), Grade III HRB400 (the old grades are 20MnSiV, 20MnSiNb, 20Mnti), and Grade IV HRB500.
Why Choose Us?
1)The products can be made completely according to the customer's requirements, and we have our own factory. 2)High quality product and good price. 3)Good Pre-sale、on sale and after sales service. 4)Short delivery time. 5)Exported all over the world, with rich experience.
FAQ
Q：I want a specific size or color. Can I get my color coated steel customized?
Yes. Customization is available. You can choose the color or pattern, size (length, width, thickness, weight, etc.), paints, shape, etc. We offer coils and sheets, as well as further processing services, such as logo printing, etc. Please send us your requirements, we will meet your requirements.
Q: Are we a trader or a manufacturer?
A: We are a manufacturer and have our own factory.
Q: How to pack?
A: Can be packaged according to customer's needs
Q: How long is your delivery time?
A: If the goods are in stock, generally about 25-30days if the goods are not in stock, according to the quantity.
